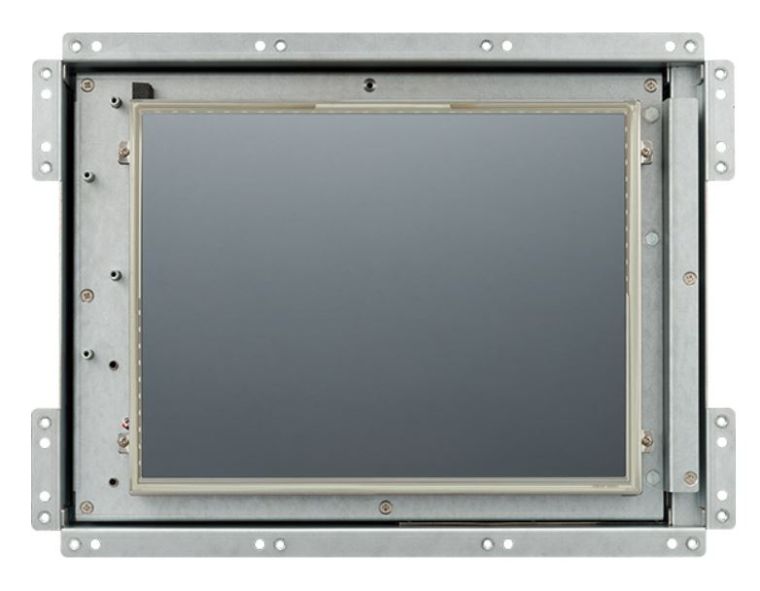

Nexcom vROK 3030

10.4” Railway Open Frame Panel Computer with Intel Atom® x6414RE Processor

The Nexcom vROK 3030, a 10.4-inch all in one railway open frame panel computer, is designed for human machine interface (HMI) and passenger information system aimed at railway applications. It implements the latest Intel Atom^® x6414RE processor on both of Windows and Linux platforms. It is able to support analog camera x 4 (work with optional capture card) or PoE camera x 2 (optional) for security purpose. LCD panel 1,200nits guarantees to reach sunlight-readable. LCD monitor, 1 x HDMI, 1 x DP video outputs for triple displays with passenger information, advertising, or onboard infotainment. The design of mini-PCIe slots x 1 and M.2 slot x 2 are supported for mSATA/capture card and WLAN/WWAN wireless connectivity for data transmission. Open frame design is able to integrate into a wide variety of configurations and form factors.

• • Intel Atom® x6414RE quad-core processor, 9W
  • 10.4” TFT LCD monitor with PCAP touch (BOM optional)
  • IPS LCD with wide viewing angle and resolution 1024 x 768
  • Sunlight readable capability: 1,200nits LCD brightness
  • LCD monitor, 1 x HDMI, 1 x DP video outputs for triple displays
  • Isolated CANBus 2.0 x 1
  • CVBS input for analog camera x 4 (work with optional capture card)
  • PoE supported for IP camera x 2 (optional)
  • Open frame design for wide variety of form factors
  • EN 50155, class OT3 (-30°C~70°C) certificated for railway
