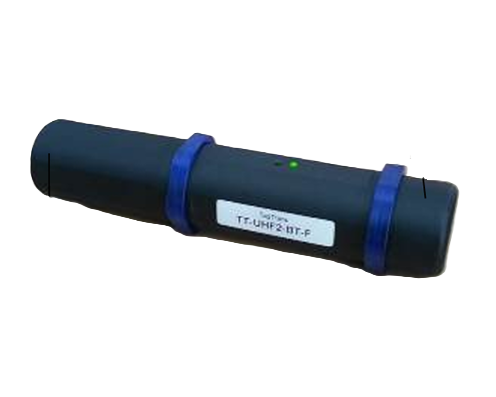

Datatronic TagTrans® & Flexiscan® Bluetooth 2D Barcode Imager & RFID Reader

Datatronic TagTrans® and FlexiScan® with modular design, offer an ATEX Zone 2/22, Bluetooth, handheld solution with 2D Imager and/or RFID Identification-System for UHF, HF and LF Transponders.

Compatible with ATEX approved handheld devices (smartphones) or tablets with Bluetooth, USB, CF/SD or PC cards.

• 2D Imager for 1D & 2D barcodes
• Modular design of TagTrans® ensures that RFID decoders for different technologies and frequencies can be
  integrated, even Legic in HF band and in LF HDX. Option for:
  • UHF 868 – 960 MHz
  • HF 13.56 MHz Multi ISO
  • HF 13.56 MHz Gem+
  • LF 125/134 kH Multi Tag
• RFID reading distance from touch up to 100 mm, depending on HF or LF transponder type,
  with UHF transponders up to 600 mm, LongRange up to 3 m.
• Bluetooth Class I, up to approx. 100 to 300 meters. Communication also by USB and serial RS232, RS422 and RS485.
• ATEX Zone 2/22 Approved (ATEX II 3G Ex ic IIB T4 Gc  // II 3D Ex ic IIIC T135°C Dc)
• CE & FCC
• Easy to handle, robust body, highest protection against dust and submerge under water, IP67
• Beeper, LED indicators for Power, Signal, Communication Control
• Battery - Li-Ion rechargeable (optional battery pack with integral charger for inductive charger)
• Operating Temperature: -20C to +85C
• Optional FlexiScan® Antenna-Extension with 10, 36 and 60 cm (others on request)
