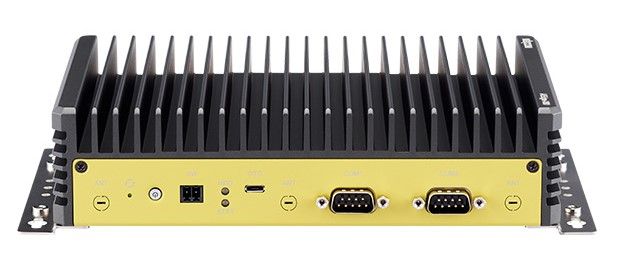

Nexcom AIEdge-X®80

Powered by NVIDIA^® Jetson Orin™ NX system on module (SoM), it can support multiple AI application pipelines with NVIDIA^® Ampere architecture GPU for deep learning and vision accelerators, AIEdge-X^®80 is a fanless edge AI computer promises up to 100 TOPS of AI inference acceleration performance. This gives you up to 3X the performance of Jetson AGX Xavier™ and up to 5X the performance of Jetson Xavier™ NX. AIEdge-X^®80 offers 1 x HDMI^®, 2 x COM port, 2 x USB 3.2, and 2 x USB 2.0 ports. Thus, AIEdge-X^®80 is dedicated for image AI processing system on object detection which can be utilized in sorting machine, security management, parcel tracking system, and traffic enforcement.


• NVIDIA® Jetson Orin™ NX 16GB (100 TOPs)
• NVIDIA® Jetson Orin™ NX 8GB (70 TOPs)
• 1024-core NVIDIA® Ampere GPU with 32 Tensor Cores
• 4 x Intel® GbE LAN port
• 1 x M.2 2280 Key M for Storage,
• 1 x M.2 3042/3052 Key B for 5G / LTE
• 1 x full size Mini PCIe for WiFi / BT
• 1 x HDMI®, 2 x COM port, 4 x USB, 1 x USB OTG
• Extended Operating Temperature -20 ~ 60 °C
• DC in 24V with 3 pin phoenix terminal block
