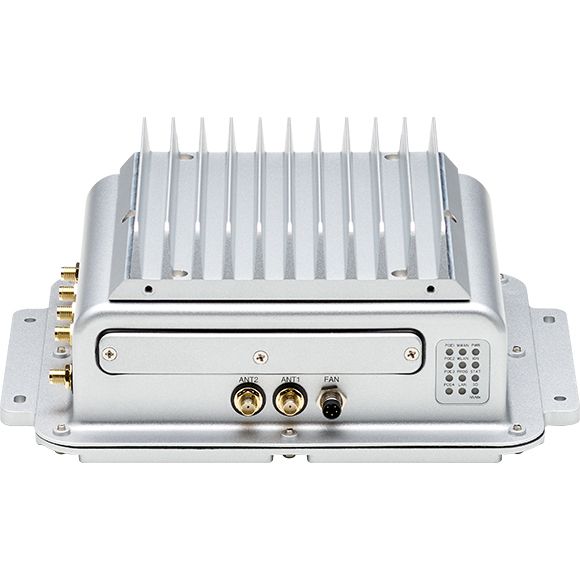

Nexcom ATC 3560-IP7-NA4C

AI is rapidly becoming the driving force behind autonomous vehicles, and the ATC 3560‑IP7‑NA4C is built to sit at the heart of that revolution. Powered by the NVIDIA Jetson Orin Nano™ SoM, this compact powerhouse delivers up to 67 TOPS of AI inference in Super Mode — enough muscle for demanding edge applications like ADAS, ANPR, AMRs, ITS, machine learning workloads, and next‑generation factory automation.

Thanks to NEXCOM’s rugged thermal engineering and full IP67 protection, the system maintains peak performance even in punishing outdoor environments, ensuring reliable real‑time AI inference when it matters most.

Designed specifically for in‑vehicle AI computing, the ATC 3560‑IP7‑NA4C supports DC 9–36V with IGN control, and includes four GbE PoE ports ready for long‑range IP cameras and LiDAR. Its extensive I/O — USB 3.2, isolated CAN bus, RS‑232, DI/DO, OTG, HDMI® and more — makes it a flexible hub for complex sensor ecosystems. Optional 5G NR and Wi‑Fi 5/6 modules enable seamless connectivity with CPS, allowing continuous AI model updates and improved inference accuracy in the field.

Built for real‑world extremes, it operates from ‑25°C to 60°C, meets MIL‑STD‑810H shock and vibration standards, and carries CE/FCC Class A, UKCA, and E‑mark certifications — making it ready for deployment in transportation fleets, construction machinery, and industrial robotics.

Key Features:

• Built-in NVIDIA Jetson Orin Nano™ SoM, up to 67 INT8 Sparse TOPS AI performance in Super Mode
• 4 x GbE PoE+ port for IP CAM/LiDAR sensors
• HEVC/H.265 hardware codec, 11 x 1080p30 compute power (decoded)
• Wide range operating temperature of -25°C~60°C (fanless, in Super Mode)
• The rugged, compact-sized, fanless design with IP67 rating
• Ultra-speed PCIe 4.0 x4 NVMe SSD for data integrity, 128GB SSD in default
• NEXCOM Acceleration Linux (NAL) OS w/ JetPack 6.2 integrated
• Expansible for LTE/5G NR & Wi-Fi 5/6
• 9V~36V DC-in with ignition control & OCP/UVP
• CE/FCC, UKCA, and E-mark certified
