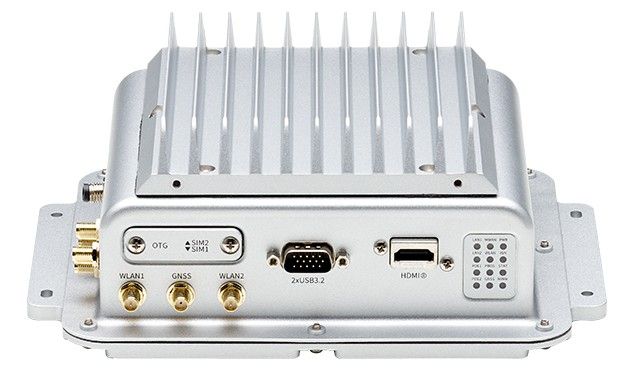

Nexcom ATC 3562-IP7-NA4M

AI has become a vital part of autonomous vehicle technologies. Equipped with the high-performance NVIDIA^® Jetson Orin Nano™ 8GB SoM, the ATC 3562-NA4M delivers up to 67 TOPS of AI inference performance in Super Mode, making it ideal for applications such as Advanced Driver Assistance Systems (ADAS) in transportation and construction, Automatic Number Plate Recognition (ANPR), Autonomous Mobile Robots (AMR), Machine Learning (ML), Intelligent Transportation Systems (ITS), railway safety assurance, and factory automation.

Thanks to NEXCOM’s advanced thermal design and its full IP67 rating, the ATC 3562-NA4M can maintain 67 TOPS even in harsh conditions, enabling consistent real-time AI inference.

The ATC 3562-NA4M is purpose-built for in-vehicle and railway AI computing. It supports DC 9V to 36V/24V rail power with IGN control, and features 4-CH GMSL2 interface and GbE PoE functionality for long-distance GMSL2 cameras and LiDAR sensors. It also offers a wide range of I/O, including USB 3.2, isolated CAN bus, RS-232, console port, digital I/O (DI/DO), OTG, and HDMI^®. With optional 5G NR and Wi-Fi 5/6 modules, the ATC 3562-NA4M can connect with CPS (Cyber-Physical Systems) for AI model retraining, enhancing inference precision in the field.

Built to endure tough conditions, the ATC 3562-NA4M supports an operating temperature range of -25°C to 65°C, and complies with MIL-STD-810H for resistance to shock and vibration. It is certified to CE/FCC Class A, UKCA, EN 50155, EN 45545-2, and E-mark standards.
