Nexcom nROK 6232-AC4S
• EN 50155
• CPU - Intel Atom® x7433RE processor
• Two video outputs, one VGA and one HDMI
• u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]

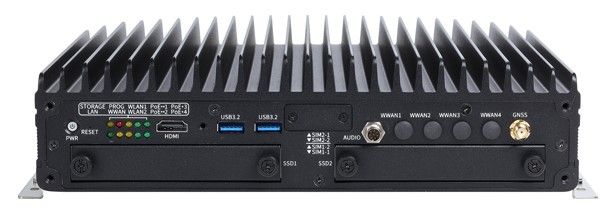

The nROK 6232, based on the Intel Atom® x7433RE processor, specifically complies with the stringent EN 50155 standard in a rugged, fanless, and compact mechanism. The nROK 6232 provides complete communication capability between the train and the computer with a built-in CAN FD interface. Equipped with intelligent power management, the nROK 6232 can be woken up by ignition, RTC timer, or remotely through SMS message. The nROK 6232 supports four 802.3bt/af/at PoE ports (maximum total 90W) to connect with IP cameras. Its design with a 2.5" removable SSD and eMMC facilitates easy storage access. The nROK 6232 maintains the flexibility to meet the demands of video surveillance in train applications.
- Intel Atom® x7433RE processor
- 4 x PoE (802.3 bt/af/at, up to 90W total)
- Built-in u-blox-M9N GPS
- Built-in CAN FD
- EN 50155, class OT4 conformity
- 3 x Expansion slot
- Dual external storage
- 1 x eMMC to run OS
- Two video outputs, one VGA, and one HDMI®
| Specs | Description |
|---|---|
| Physical | Dimension - 260mm (W) x 196mm (D) x 66.5mm (H) |
| Processor | Intel Atom® x7433RE processor |
| Memory | DDR5 4800 SO-DIMM, default 8GB |
