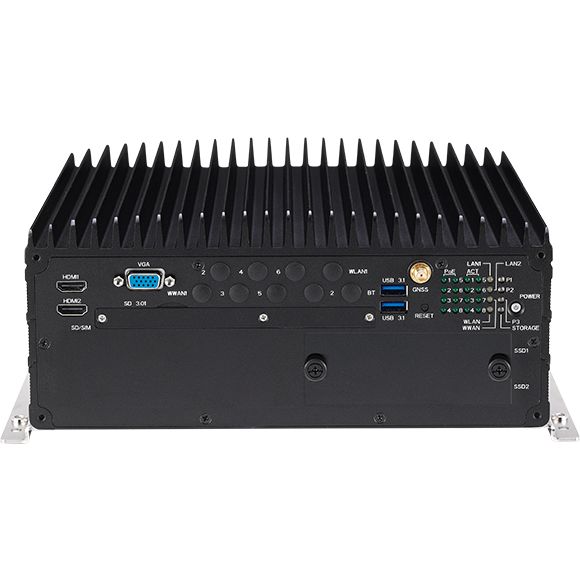

Nexcom nROK 7252-W12-C8S

• DC Input 24V~110V, 2 x SSD Tray

• Cpu - Intel® Coffee Lake S/Refresh 8th/9th Gen Core™/Xeon® LGA1151 socket-type CPU

• OS - Windows 10 or Linux

• Memory - up to 64GB

Add to Compare

Product Description

Get in Touch

Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.

The NEXCOM system nROK 7252-W12-C8S accomplishes operational efficiency of public transportation and service. Based on Intel® Coffee Lake S/Refresh 8th/9th Gen Core™ or Xeon® LGA1151 socket-type CPU with 8-port 802.3 af/at PoE.

The nROK 7252-W12-C8S with EN 50155 rail approval and wide voltage input (21~110VDC) provides an integral solution incorporating high computing power with dual SIM cards per modem support, it allows for six SIM cards for better connectivity quality by software. In addition, six SIM cards and three WWAN modules (with LTE & 5G support) architecture can increase the bandwidth for faster data transmission speed. The two external SSD for RAID 0, 1, 5, 10 guarantee the safety of data. The nROK 7252-W12-C8S keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, transportation cellular router, video server, and video surveillance.

  • Intel® Coffee Lake S/Refresh 8th/9th Gen Core™/Xeon® LGA1151 socket-type CPU
    • Intel® Core™ i7-9700TE/i7-8700T, TDP 35W
    • Intel® Core™ i5-9500TE/i5-8500T, TDP 35W
    • Intel® Core™ i3-9100TE/i3-8100T, TDP 35W
    • Intel® Xeon® E-2278GEL, TDP 35W
    • Intel® Celeron® G4900T, TDP 35W
  • Six SIM cards + three WWAN modules support
  • LTE/5G WWAN module support
  • 2 x External SSD for RAID 0, 1, 5, 10 (compatible with 15mm disk)
  • 2 x mSATA (occupied mini-PCIe slot)
  • EN 50155: 2017, class OT4 conformity
  • Three video outputs, one VGA and two HDMI
  • 3 x mini-PCIe + 2 x M.2 socket expansion
  • 1 x SD card for exporting and backing up data
  • Wide voltage input 24~110VDC (w/ isolation)
  • Up to 3-sec protection against temporary voltage dips
SpecsDescription
Physical Dimension -  260 x 266 x 110 (W x D x H) (mm)
Processor Intel® Coffee Lake S/Refresh 8th/9th Gen Core™/Xeon® LGA1151 socket-type CPU
Memory 2 x 260-pin DDR4 SO-DMIM sockets up to 32GB/channel (64GB for two channels)
