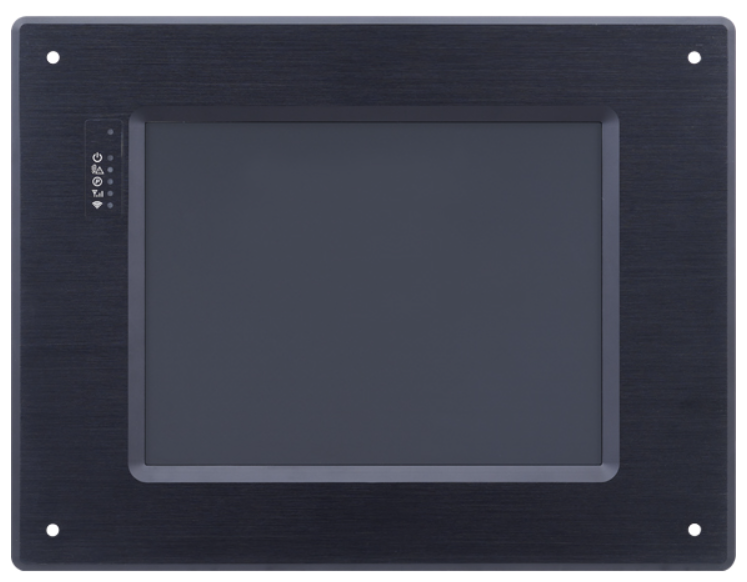

Nexcom vROK 3030-A-B

10.4” Railway Panel-Mount Computer with Intel Atom® x6414RE Processor

The Nexcom vROK 3030, a 10.4-inch all-in-one railway panel-mount computer, is designed for human machine interface (HMI) and passenger information system aimed at railway applications. It implements the latest Intel Atom^® x6414RE processor on both of Windows and Linux platforms. It is able to support analog camera x4 (work with optional capture card) or PoE camera x2 (optional) for security purpose. LCD panel 1,200nits guarantees to reach sunlight-readable. LCD monitor, HDMI x1, DP x1 video outputs for triple displays with passenger information, advertising, or onboard infotainment. The design of mini-PCIe slots x1 and M.2 slot x2 are supported for mSATA/capture card and WLAN/WWAN wireless connectivity for data transmission. Panel-mount design is able to integrate into a wide variety of configurations and form factors.

• • Intel Atom® x6414RE quad-core processor, 9W
  • 10.4” TFT LCD monitor with PCAP touch (BOM optional)
  • IPS LCD with wide viewing angle and resolution 1024 x 768
  • Sunlight readable capability: 1,200nits LCD brightness
  • LCD monitor, HDMI x1, DP x1 video outputs for triple displays
  • Isolated CANBus 2.0 x1
  • CVBS input for analog camera x4 (work with optional capture card)
  • PoE supported for IP camera x2 (optional)
  • Open frame design for wide variety of form factors
  • EN 50155, class OT3 (-30°C~70°C) certificated for railway
