Nexcom VTC 210
• Weight - 0.5Kg
• CPU - Rockchip RK3328 Quad-core ARM® Cortex®-A53 processor up to 1.5GHz
• OS - Linux
• Rugged, fanless and compact
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]

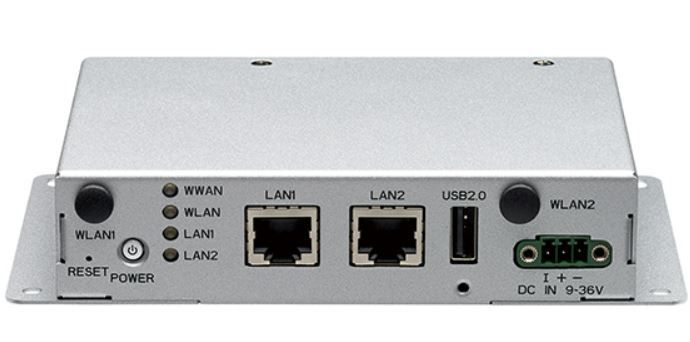

VTC 210 features Quad-core ARM® Cortex®-A53 processor, offering powerful graphics and multimedia enhancements. VTC 210 is rugged, fanless, and compact, designed especially for vehicles with limited space. By default, it comes with an advanced GPS receiver supporting GNSS/Glonass/QZSS/Galileo/Beidou. VTC 210 features WLAN and WWAN wireless data and voice connectivity with an onboard micro SIM slot.
For better protection and control of vehicles, VTC 210 provides SDK control API such as integration modules power/reset on/off, WDT control,ignition delay timer, etc. VTC 210 maintains the flexibility to meet different demands for telematics applications, such as infotainment, fleet management, dispatching system, and in-vehicle gateway.
-
- Built-in Rockchip RK3328 Quad-core ARM® Cortex®-A53 processor up to 1.5GHz
- Built-in u-blox NEO-M9N GNSS module
- 1 x DB9 for full RS232
- 1 x HDMI, (BOM option VGA + Audio)
- WLAN module option (USB interface)
- 1 x M.2 Key B for WWAN with 1 x internal Micro SIM slot
- SDK for power/reset/WDT/IGN/UVP threshold/GNSS on/off control
- Wide operating temperature -20°C ~ 70°C
- Wide range DC input from 9V ~ 36V
- Certified by CE/FCC/E13
| Specs | Description |
|---|---|
| Physical | Dimension - 130x100x31mm / Weight - 0.5Kg |
| processor | Rockchip RK3328 Quad-core ARM® Cortex®-A53 processor up to 1.5GHz |
| RAM | DDR4 2GB onboard (BOM option 4GB) |
