Nexcom VTC 6232
• Intel Atom® processor x7433RE 4 cores
• Two video outputs, one VGA, and one HDMI®
• OS - Windows 10
• Built-in u-blox-M9N GPS
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]

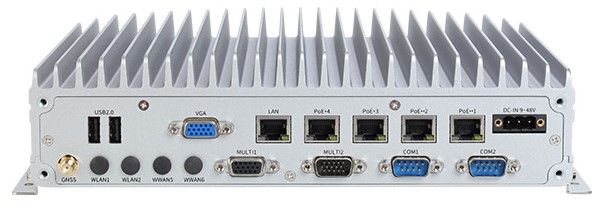

VTC 6232, based on the Intel Atom® quad-core processor x7433RE (up to 1.5GHz), specifically complies with stringent E-mark standards in a rugged, fanless, and compact mechanism. VTC 6232 provides complete communication capability between the vehicle and the computer with a built-in CAN FD interface. Equipped with intelligent power management, VTC 6232 can be woken up by ignition, RTC timer, or remotely through SMS message. VTC 6232 supports four 802.3bt/af/at PoE ports (maximum total 90W) to connect with IP cameras. The design with a 2.5” removable SSD and eMMC facilitates easy storage access. VTC 6232 maintains the flexibility to meet the demands of video surveillance in vehicle applications.
- Intel Atom® processor quad core x7433RE, 1.5GHz
- 4 x PoE (802.3 bt/af/at, max. total 90W)
- Built-in u-blox-M9N GPS
- Built-in CAN FD
- E Mark conformity
- 3 x expansion slot
- Dual external storage (compatible with 15mm disk)
- 1 x eMMC to run OS
- Two video outputs, one VGA, and one HDMI®
| Specs | Description |
|---|---|
| Physical | Dimension - 260x196x66.5mm / Weight - 3.2Kg |
| Processor | Intel Atom® x7433RE |
| RAM | 1 x DDR5 4800 SO-DIMM, default 8GB |
