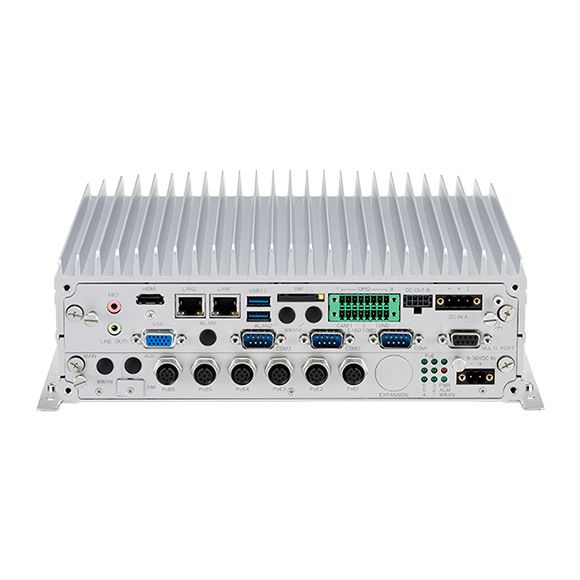

Nexcom MVS 5603-C6SMK 6-CH PoE Mobile NVR increases safety and security for bus passenger transportation with high video resolution and 2 removable extensive storage HDD/SSD capacity. It connects up to 6 IP cameras + PoE function providing reliable and high quality video coverage around the bus.
MVS 5603-C6SMK is a modular design, it is flexible to use other kinds of expansion boards to extend different I/O functions for different applications.
Nexcom MVS 5603-C6SMK leverages wireless networks to simplify fleet management with capabilities such as remote, real-time video monitoring. This remote capability keeps transit fleets in service around the clock.
Vehicle data integration and diagnostics are also carried out via CAN Bus and OBDII. MIL-STD-810G for shock and vibration is designed to operate in harsh environments. Optional internal back-up battery guards Nexcom MVS 5603-C6SMK against any unexpected vehicle power failure or unstable vehicle power.
| Specs | Description |
|---|
| CPU |
- 6th generation Intel® Core™ dual core i7-6600U, 2.6GHz/i3-6100U, 2.3GHz
|
| Memory |
- 2GB DDR3L SO-DMIM 1600MHz 204-pin (up to 16GB)
|
| Storage |
- 2 x 2.5" SATA 3.0 SSD/HDD (removable)
- 1 x CFast
|
| Expansion |
- 1 x full size mini-PCIe socket (USB 2.0)
- 1 x full size mini-PCIe socket (USB 2.0 + PCIe)
- 1 x half size mini-PCIe socket (USB 2.0 + PCIe)
- 1 x M.2 B-key (3042)
- 1 x full size mini-PCIe socket (USB 2.0)
|
| GPS & On-Board Sensors |
- 1 x default U-blox NEO-M8N GNSS module for GPS/Gloness/QZSS/Galileo/Beidou
- Optional modules with Dead Reckoning available
- Built-in G-sensor
|
| Power over Ethernet |
- 6-port M12 for 10/100/1000 Mbps PoE IEEE 802.3af conformity, total 60W
|
| I/O Ports - Front |
- 6 x LED indicators for power/storage/WLAN/WWAN/Status/Health
- 1 x Reset button
- 2 x USB type A USB3.0 port
- 2 x phone jacks 3.5mm for 1 x Mic-in and
- 1 x Line-out1 x externally accessible SIM card socket
- 2 x antenna holes for WWAN/WLAN/BT/GPS
|
| I/O Ports - Rear |
- 6 x M12 10/100/1000 Mbps PoE ports with LED
- 2 x RJ45 10/100/1000 Intel® Fast Ethernet with LED
- 1 x 9~36VDC input with ignition and 40W typical power consumption
- 2 x USB type A USB 3.0 port2 x phone jacks 3.5mm for
- 1 x Mic-in and 1 x Line-out
- 1 x DB-15 VGA, resolution up to 2560 x 1600 @60Hz
- 1 x HDMI port, resolution up to 2560 x 1600 @60Hz
- 2 x DB-9 RS-2321 x DB-9 RS-232/422/485 (RI/5V/12V selectable)
- 1 x 12VDC output (2A) + SM Bus + 2 x MDI + power button
- 1 x DB9 connector for optional DR signal input, 2 x MDO and iButton
- 1 x 16-pin terminal block connector
1 x CAN Bus 2.0B (on board)
1 x OBDII from optional VIOB-CAN-03 module (SAE J1939)
1 x CAN Bus 2.0B from optional VIOB-CAN-03 module
8 x programmable GPIO
(4 x Digital inputs in default)
-Input voltage (source type): 5VDC TTL (default)
-Input voltage (external type): 3 ~ 12VDC
(4 x Digital outputs in default)
-Digital output (source type): 5VDC TTL (default), max current: 20mA
-Digital output (external type): 3 ~ 24VDC, max current: 150mA
- 1 x externally acessible SIM card socket and 1x internal SIM card socket selectable
|
| Power Managment |
- Selectable boot-up & shut-down voltage for low power protection by software. Setting 8-level power on/ off delay time by software. Support S3/S4 suspend mode
- Optional internal 1100mAh, Li-Polymer rechargeable battery
|
| OS |
- Windows 7
- WES7
- Windows 8
- WES8
- Windows 10
- Linux kernel 3.X
|
| Environment |
- Operating temperatures: -30°C~60°C (w/ industrial SSD) with air flow
- Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g
|
| Dimensions |
- 260mm (W) x 196mm (D) x 91mm (H)
- Weight 4 Kg
|
