Nexcom VIP 1000 (VIP 1000-T & VIP 1000-R)
• Full HD dual HDMI Extender over IP system for public transport applications
• Unicast, daisy chain and multicast modes support
• Up to 100 meter distance & selectable video source
Product Description
Get in Touch
Our highly experienced and friendly staff are here to answer your question and to assist you in selecting the right mobile system for your requirements.
Call us on 01691 900222
Email [email protected]

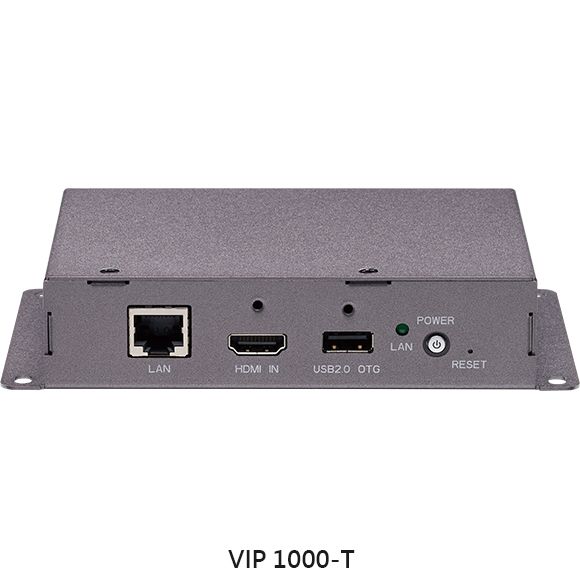

The Nexcom VIP 1000 (Transmitter: VIP 1000‑T and Receiver: VIP 1000‑R) is a next‑generation Full HD dual‑HDMI extender over IP designed specifically for public transport environments. It delivers reliable HDMI transmission beyond 100 metres, streamlining how passenger information systems (PIS) and onboard infotainment distribute video throughout a vehicle.
The receiver, VIP 1000‑R, includes an additional RJ‑45 network port, enabling seamless in‑vehicle DaisyChain expansion so operators can support more displays without complex cabling. The system also supports multiple transmitters on the same network, allowing different video sources to be distributed simultaneously. Through an intuitive web interface, operators can easily select and manage the desired video feed, making system control more flexible and efficient.
Main Features:
- Full HD HDMI (1.4b) extender over IP
- 9-36VDC input voltage with ignition control
- E mark for in-vehicle application
- Plug and Play
- 2 x Full HD HDMI output
- Unicast, daisy chain and multicast modes support
- Selectable video source
- Up to 100 meter distance
| Specs | Description |
|---|---|
| Size | 130 mm (W) x 100 mm (D) x 31 mm (H) |
| Weight | 0.5 kg |
| Power | Input: 9~36 VDC |
